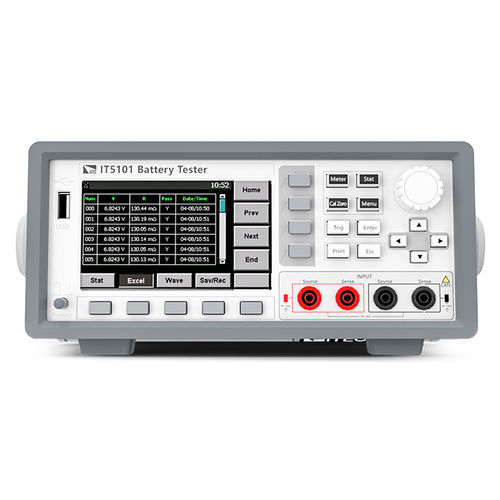

Internal resistance tester IT5100

voltagebatteryUSB

IT5100 series is a series of battery internal resistance testers with high precision, high resolution and high speed. IT5100 adopts AC 4-terminal sensing, that means the tester can test internal resistance and voltage simultaneously with high precision. Resistance resolution is down to 0.1 μΩ, voltage resolution is 10 μV. Combined with external USB disk, IT5100 is available for long-term statistics calculation.Built-in comparator function, IT5100 can automatically determine whether the battery parameters meet the standards and count pass rate, which is suitable for a variety of battery`s test and pick. Built-in USB / LAN communication interface to support SCPI communication protocol.Single unit of IT5102 support 16 channels batteries measurement, master- slave connection up to max.17 sets and extension channels quantity up to 272, that greatly improves testing efficiency. Built-in LAN / RS232 communication interface, IT5100 series can be widely applied in cellphone lithium batteries,electric vehicle batteries and other batteries inspection and sorting. Features ♦ Support resistance & voltage simultaneously test and display, 4.3 inch LCD screen ♦ Voltage ranges: ±6V~ ±1000 V, resolution:10 μV *2 ♦ Resistance ranges: 3 mΩ~3000 Ω, resolution: 0.1μΩ*1 ♦ voltage ranges,7 resistance ranges, optional automatic or mannu measuring *3 ♦ Support resistance & voltage simultaneously test, speed up to 125 times / S *4 ♦ Built-in USB, LAN interfaces,supports SCPI protocol. ♦ Statistics calculation and data USB storage function ♦ Comparator function: sorting result HI/IN/LOW display ♦ Zero adjustment function ♦ 4-terminal AC measurement ♦ Measuring result alarm
