Voltage tester ITS5300

resistanceperformanceAC

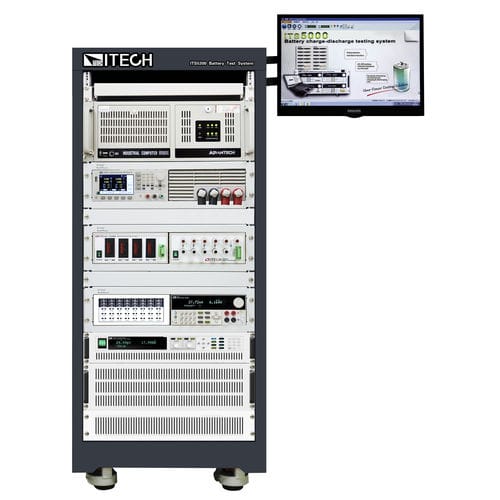

ITS5300 battery charge and discharge test system isdesigned for a variety of power batteries (lead acid, nickel hydrogen, lithiumbatteries, super capacitors, hydrogen fuel cells, etc.) for performancetesting. ITS5300 test system can be used in performance testing of a hundred ormore battery packs or 200 cells in the battery packs at one time, remarkably improving the testing efficiency and capacity of the productionline. ITS5300 test system consists of ITECH powersupply, electronic load, internal resistance tester, temperature acquisitionand other products with professional battery test software components, highdegree of automation and high stability. ITS5300 is the best choice for user testing. Features ♦ Balance charging and discharging capacity, designed for battery module / cell test. * Charge mode: CC / CV / pulse charge * Discharge mode: CC / CR / CP / pulse discharge * Voltage range: 0 - 1000V * Current range: 0 - 1200A * Power range: 0 - 600 kW ♦ Fast response and high-speed sampling rate, sampling rate and data storage time down to 1ms. ♦ High reliability and high precision guarantee absolute measurement accuracy within the broad voltage/current range, making the test system more efficient in use. * Voltage: 0.05% +30 mV * Current: 0.2% +120 mA ♦ Standard modular design not only makes it easy for hardware extension and follow-up maintenance but also expand its applications. ♦ Real-time online monitoring on single module resistance, voltage and temperature. Support cell battery AC internal resistance analysis and battery pack
