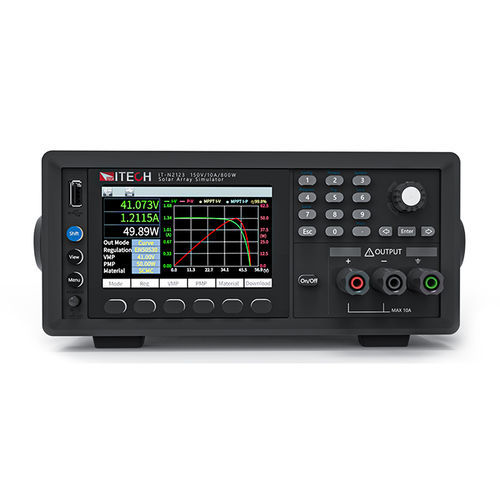

Solar array simulator power supply IT-N2100

DCwith overcurrent protectionwith USB outlet

IT-N2100 series solar array simulator is a high performance DC power supply with fast change of IV curve. It can simulate the IV output characteristics of various solar panels under different environments (temperature, light, shadow decay, aging). It can be applied for the tests of solar micro-inverter, power optimizer, satellite power system, sail power array and so on. IT-N2100 solar array simulator has low ripple, low noise and fast MPPT, supports multi-channel synchronous control and high voltage topology. ♦ Precise simulation of the IV characteristics output of silicon, GaAs and other types of solar PV panels ♦ Built-in solar array simulation software, supporting multi-channel control ♦ High-speed current dynamic response to support fast MPPT for microinverters ♦ Up to 1500V DC output common-mode withstand voltage, supporting series testing of the DUT ♦ Fixed mode, adjustable output impedance,can simulate CC, CV, CP output ♦ Ultra-low current ripple, high precision sampling, programming and measurement ♦ Simulate I-V curve under different temperature and light ♦ Built-in EN50530, Sandia, NB/T32004, CGC/GF004, CGC/GF035 regulations dynamic model test, and generate reports ♦ Graphical operation interface, real-time display of MPPT status of PV inverter ♦ Dynamic list sequence programming: 100 steps x 20 data sets ♦ Real-time data and curve recording for further analysis ♦ Simulation of dynamic and static I-V curves of solar panels under cloud shadow ♦ Table mode supports I-V curve fitting with 4096 points ♦ Quickly generate I-V by setting Voc, Isc, Vmp, Imp by four-point method ♦ Comprehensive curve protection: OVP, OCP, OPP, OTP
