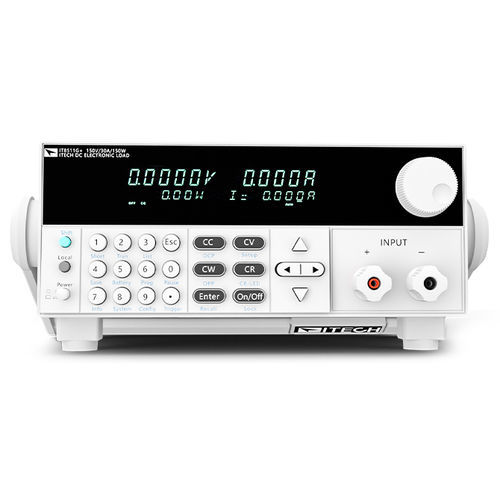

DC electronic load IT8500G+

programmableLAN

The IT8500G+ series is a programmable DC electronic load is specifically designed for high-precision ripple testing, with a sampling bandwidth of up to 300kHz. With the built-in ripple test function, it’s easy to measure voltage and current ripple of the DUT. IT8500G+ has built in as many as 8 fast charging protocols, meeting the test requirement of fast charging adapters, power banks, fast charging power banks and other products. At the same time, it also has other functions like automatic testing, battery discharge testing, dynamic testing, etc. So it can complete most of the performance testing of switching power supplies, batteries and other product during the development and production stages. Ripple is one of the parameters that must be tested for switching power supplies. Excessive ripple may cause interference to the DUT or shorten the life of the DUT. IT8500G+ has a ripple measurement function, and its measurement bandwidth is up to 300kHz, which meets the ripple measurement requirements of switching power supplies or chargers. At the same time, its remote sense function can help to eliminate the impact caused by the voltage drop on the line. No oscilloscope needed, users can just press the ‘down’ button on the front panel to read the voltage ripple value (Vp-p/Vp+/Vp-) and current ripple value (Ipp/Ip+/Ip-) of the DUT directly. This greatly simplifies the wiring and operation process. The consumption of battery power is getting faster and faster due to more andmore functions generated in mobile phone. Fast charging technology can helpto improve user experience under the situation.
