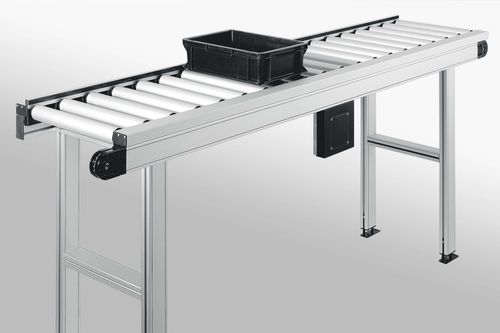

Roller conveyor 0.0.463.53

chainprofilebearing

A conveyor with chain-driven rollers is ideal for a whole range of automated conveyor and transport operations. It is constructed using a chain drive. The special Conveyor Rollers are driven on one side by a completely covered chain in the frame profile grooves. The driven roller conveyor should not exceed 6 m in length. The distance between the individual rollers can be selected at will. A roller can be up to 800 mm wide. Conveyor Rollers are produced from Tubes D50 Al or D50 KU and the relevant Bearing Set. A Bearing Set consists of two complete bearing flanges, one of which is equipped with a sprocket wheel which engages with the chain drive. Roller Bearing Sets are available in driven and non-driven versions. Non-driven versions can be used, for example, to incorporate accumulating rollers into a driven roller conveyor. Conveyor Roller, driven, Bearing Set The housing of the Chain Reverse Unit is prepared for securing a Bearing Block. This Conveyor Roller is not driven via the chain. If required, the last Conveyor Roller can also be driven from the last driven roller by means of a ø 4 mm round belt.
