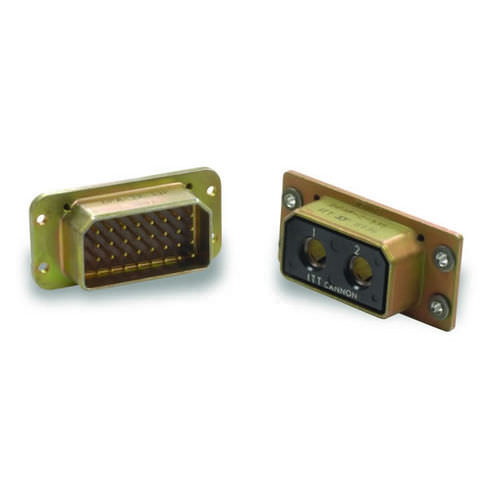

Data connector DPAIDErectangularblind mate
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- IDE
- Shape
- rectangular
- Connection type
- blind mate
- Material
- aluminum
- Domain
- for the aerospace industry
- Other characteristics
- rugged, for rack and panel applications, miniature
- Primary current
Max.: 60 A
Min.: 2 A
- Voltage
Max.: 300 V
Min.: 0 V
Description
Product Description
DPA connectors are rugged, blind mate, miniature rack/panel connectors that utilize maximum insert space in a single gang shell. Polarization is accomplished with a keystone cornored shell. The operating temperature is -55C to +125C (-67F to +257F). DPA connectors are available with float mount shells (DPAF). This option includes four rivets (.093 ID with a minimum of .032 float) with washers on the contact termination side of the connector. Other options include large flange shells (DPAL) and connectors with Little CAESAR Contacts (DPAMA).
