Pneumatic fitting ipso 010 FKM
push-inISODIN

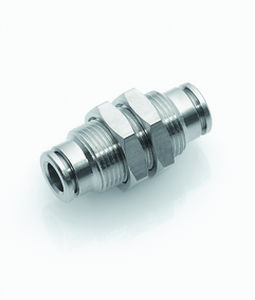

Pneumatic fitting - ipso 010 FKM - ITV - push-in / ISO / DIN
Pneumatic fitting - ipso 010 FKM - ITV - push-in / ISO / DIN
Pneumatic fitting - ipso 010 FKM - ITV - push-in / ISO / DIN - image - 2
Add to favorites
Compare this product


Characteristics

Applications
pneumatic
Attachment
push-in
Norms
ISO, DIN
Material
silicone-free, stainless steel
Other characteristics
union, with O-ring, flexible, bulkhead, modular, vacuum
Diameter

Min.: 4 mm
(0.157 in)

Max.: 16 mm
(0.63 in)

Operating pressure

16 bar
(232.06 psi)

Description

– Push-in system with stainless steel elasticclamb – Tube assembly with one movement – For tubes in various materials (PU, PA) – Small-scale and low weight – FKM O-rings for high temperatures – O-ring in sealing channel – for raw surfaces – Modular, flexible structure – Hexagon socket for easy assembly Operating temperature -20°C to +150°C Dependent on the tube’s temperature characteristics Vacuum max 98% Materials Brass housing, nickel-plated FKM seals Stainless steel clamp Brass thrust ring, nickel-plated CW614N und CW617N silicone-free mixture AISI 316L CW614N Thread Cyl. thread, DIN EN ISO 228 Con. thread, DIN EN 10226 (DIN 2999) Metr. thread, DIN ISO 261 Cylindrical with O-ring seal Medium Lubricated and non-lubricated compressed air Mediums which are compatible with the component materials Tubes For tubes in line with ISO 14743 Tolerances for external Ø 4 to 8: ±0.1 Tolerances for external Ø 10 to 14: ±0.15 (PU) 10 to 14: ±0.1 (PA) Recommended materials: PU, PA

Catalogs

ITV Pneumatik
ITV Pneumatik
265 Pages
