Pneumatic fitting HDS 022 k
threaded90° angleISO

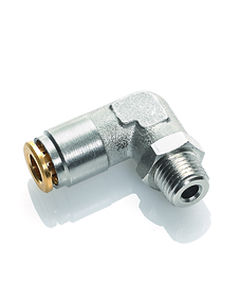

Pneumatic fitting - HDS 022 k - ITV - threaded / 90° angle / ISO
Pneumatic fitting - HDS 022 k - ITV - threaded / 90° angle / ISO
Pneumatic fitting - HDS 022 k - ITV - threaded / 90° angle / ISO - image - 2
Add to favorites
Compare this product

Go to the ITV website for more information

Characteristics

Applications
pneumatic
Attachment
threaded
Configuration
90° angle
Norms
ISO, DIN
Material
nickel-plated brass
Gender
male
Other characteristics
with O-ring, high-pressure, flexible, modular
Diameter

4 mm, 6 mm
(0.157 in, 0.236 in)

Operating pressure

250 bar
(3,625.94 psi)

Description

– Fitting for the high-pressure range – Tube assembly with one movement – Release ring with integrated clamp – For tubes in various materials – Small-scale and low weight – NBR O-ring – Modular, flexible structure Operating temperature -40°C to +150°C Materials Brass housing, nickel-plated HNBR seals Brass socket Brass thrust ring, polished Parallel thread, DIN EN ISO 228 Con. thread, DIN EN 10226 (DIN 2999) Metr. thread, UNI 7707 Lubricating oils, greases CW614N and CW617N CW614N CW614N Thread Cyl. thread, DIN EN ISO 228 Con. thread, DIN EN 10226 (DIN 2999) Metr. thread, UNI 7707 Cylindrical with O-ring seal Tubes Tolerances: ±0,05mm Recommended materials: PA6-6, tubes suitable for high pressures
