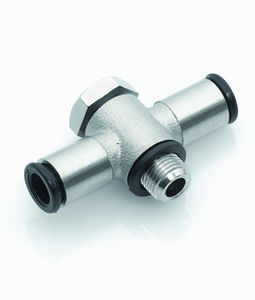

Compressed air fitting ipso 018

push-inbanjoT

– Push-in system with stainless steel elastic clamp – Tube assembly with one movement – For tubes in various materials (PU, PA) – Small-scale and low weight – O-ring in sealing channel — for rough surfaces – Modular, flexible structure – Hexagon socket for easy assembly Operating temperature : -20°C bis +70°C -20°C bis +80°C For fittings with PVC seal For fittings with NBR O-rings Vacuum : max 98% Materials : NBR seals Black thrust ringCW614N and CW617N plastic Thread : Cyl. thread, DIN EN ISO 228 Con. thread, DIN EN 10226 (DIN 2999) Metr. thread, DIN ISO 261Cylindrical with O-ring seal Tubes: For tubes in line with ISO 14743 Tolerances for external Ø 4 to 8: ±0.1 Tolerances for external Ø 10 to 14: ±0.15 (PU) 10 to 14: ±0.1 (PA) Recommended materials, PU, PA
