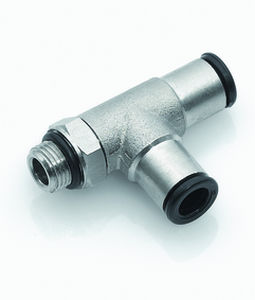

Compressed air fitting ipso 021threadedpush-inT
Add to favorites
Compare this product
Characteristics
- Applications
- for compressed air
- Attachment
- threaded, push-in
- Configuration
- T
- Norms
- ISO, DIN
- Material
- silicone-free, nickel-plated brass, stainless steel
- Gender
- male
- Other characteristics
- with O-ring, flexible, modular
- Diameter
Max.: 14 mm
(0.551 in)Min.: 3 mm
(0.118 in)- Operating pressure
16 bar
(232.06 psi)
Description
– Push-in system with stainless steel elastic clamp
– Tube assembly with one movement
– For tubes in various materials (PU, PA)
– Small-scale and low weight
– O-ring in sealing channel — for rough surfaces
– Modular, flexible structure
– Hexagon socket for easy assembly
Operating temperature :
-20°C bis +70°C
-20°C bis +80°C
For fittings with PVC seal
For fittings with NBR O-rings
Vacuum :
max 98%
Materials :
NBR seals
Black thrust ringCW614N and CW617N
plastic
Thread :
Cyl. thread, DIN EN ISO 228
Con. thread, DIN EN 10226 (DIN 2999)
Metr. thread, DIN ISO 261Cylindrical with O-ring seal
Tubes:
For tubes in line with ISO 14743
Tolerances for external Ø
4 to 8: ±0.1
Tolerances for external Ø
10 to 14: ±0.15 (PU)
10 to 14: ±0.1 (PA)
Recommended materials, PU, PA
