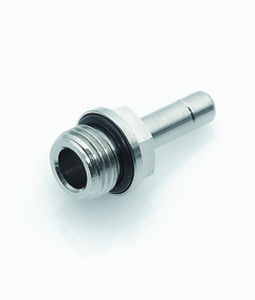

Pipe hydraulic adapter ipso 06reducingthreadedstainless steel
Add to favorites
Compare this product
Characteristics
- Applications
- for pipes, reducing
- Connection type
- threaded
- Material
- stainless steel, silicone-free
- Other characteristics
- DIN, straight, with O-ring, modular
- Diameter
Min.: 4 mm
(0.157 in)Max.: 14 mm
(0.551 in)- Length
Min.: 25 mm
(0.98 in)Max.: 46.5 mm
(1.83 in)
Description
– Push-in system with stainless steel elastic clamp
– Tube assembly with one movement
– For tubes in various materials (PU, PA)
– Small-scale and low weight
– O-ring in sealing channel — for rough surfaces
– Modular, flexible structure
– Hexagon socket for easy assembly
Operating temperature :
-20°C bis +70°C
-20°C bis +80°C
For fittings with PVC seal
For fittings with NBR O-rings
Vacuum :
max 98%
Materials :
NBR seals
Black thrust ringCW614N and CW617N
plastic
Thread :
Cyl. thread, DIN EN ISO 228
Con. thread, DIN EN 10226 (DIN 2999)
Metr. thread, DIN ISO 261Cylindrical with O-ring seal
Tubes:
For tubes in line with ISO 14743
Tolerances for external Ø
4 to 8: ±0.1
Tolerances for external Ø
10 to 14: ±0.15 (PU)
10 to 14: ±0.1 (PA)
Recommended materials, PU, PA
