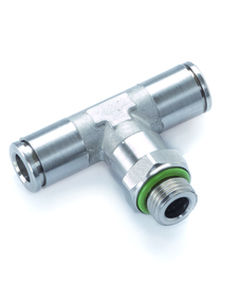

Pneumatic fitting STX 05push-inTISO
Add to favorites
Compare this product
Characteristics
- Applications
- pneumatic
- Attachment
- push-in
- Configuration
- T
- Norms
- ISO, DIN
- Material
- stainless steel
- Other characteristics
- with O-ring, flexible, modular
- Diameter
4 mm, 6 mm, 8 mm, 10 mm, 12 mm
(0.157 in, 0.236 in, 0.315 in, 0.394 in, 0.472 in)- Operating pressure
16 bar
(232.06 psi)
Description
– Fitting 100% stainless steel 1.4404
– Tube assembly with one movement
– For tubes in various materials (PU, PA)
– Small-scale and low weight
– FKM O-rings for high temperatures
– Modular, flexible structure
Operating temperature - -20°C to +150°C -
Vacuum - max 98% -
Thread -
Cyl. thread, DIN EN ISO 228
Con. thread, DIN EN 10226 (DIN 2999)
Metr. thread, DIN ISO 261 -
Cylindrical with O-ring seal
Tubes -
For tubes in line with ISO 14743
Tolerances for external Ø
4 to 8: ±0.1
Tolerances for external Ø
10 to 14: ±0.15 (PU)
10 to 14: ±0.1 (PA) -
Recommended materials: PU, PA
