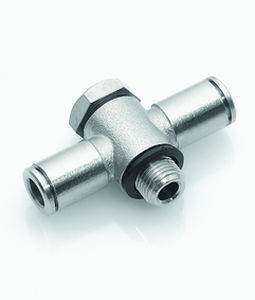

Pneumatic fitting ipso 018

push-inbanjocross

– Push-in system with elastic clamp made of stainless steel – Thrustring made of brass, nickel-plated, for many applications – Tube assembly with one movement – For tubes in various materials – Small-scale and low weight – O-ring in sealing channel – for rough surfaces – Modular, flexible structure – Hexagon socket for easy assembly Operating temperature - -20°C to +70°C For fittings with PVC seal -20ºC to +80°C For fittings with NBR O-rings Vacuum - max 98% Materials NBR seals CW614N and CW617N Silicon-free AISI 316L CW614N Thread Cyl. thread, DIN EN ISO 228 Con. thread, DIN EN 10226 (DIN 2999) Metr. thread, DIN ISO 261 Cylindrical with O-ring seal Tubes For tubes in line with ISO 14743 Tolerances for external Ø 4 to 8: ±0.1 Tolerances for external Ø 10 to 14: ±0.15 (PU) 10 to 14: ±0.1 (PA) Recommended materials, PU, PA
