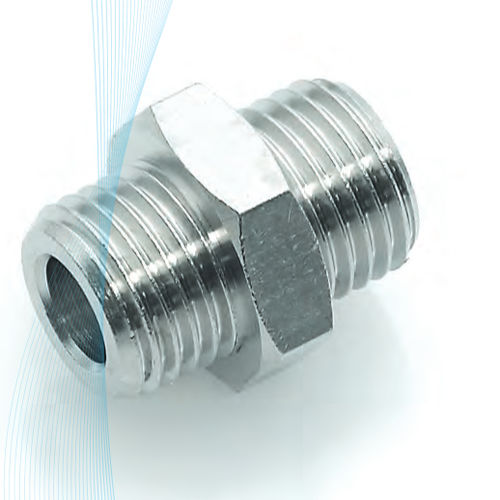

Brass nipple 101 threadednickel-platedhexagonal
Add to favorites
Compare this product
Characteristics
- Material
- brass
- Other characteristics
- threaded, straight, hexagonal, nickel-plated
- Diameter
Max.: 1 in
Min.: 0.125 in
Description
Standard fittings Type 100
– Brass fittings
– High resilience
– Nickel-plating for corrosion protection
Operating temperature
max. +150°C
Dependent on the temperature range of the tube/pipe used
Dependent on the pressure range of the tube/pipe used and the temperature used
Materials
Brass, nickel-plated or polished
CW614N and CW617N
Thread
Cyl. thread, DIN EN ISO 228
Con. thread, DIN EN 10226 (ISO7 / DIN 2999)
Metr. thread, DIN ISO 262
Medium
Pneumatic, oil-hydraulic and hydraulic circuits
Catalogs
ITV Pneumatik
265 Pages
Standard fittings Type 100
43 Pages
