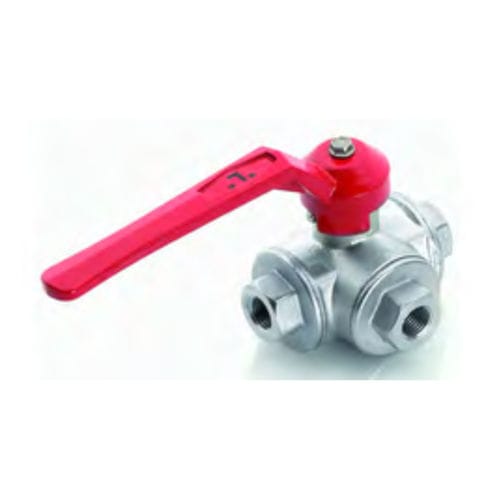

Ball valve 5050 seriesleverfor hot waterfor gas
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for hot water, for gas, for air
- Body
- threaded, nickel-plated brass, aluminium
- Applications
- for heating, flexible
- Number of channels
- 3-way
- Other characteristics
- ISO, DIN
- DN
Min.: 10 mm
(0.394 in)Max.: 45 mm
(1.772 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 60 bar
(870.2 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 220 °C
(428 °F)
Description
– Various lines for flexible applications
– Mini ball valves also with plug connection
Operating pressure
See table
Ball valve up to max. 60 bar
Actuation up to max. 8.4 bar
Materials
Brass housing (Ms58), nickel-plated
Ball made of brass (Ms58), chrome layer
Handle made of aluminium, painted
Seal made of PTFE
O-ring made of FKM
Thread
Cyl. thread, DIN EN ISO 228
Applications
Industrial pneumatics, hydraulics, heating, sanitation
Resistant to hot water, wet steam up to
+130°C, petrol, diesel, kerosene, acids,
gases, compressed air
