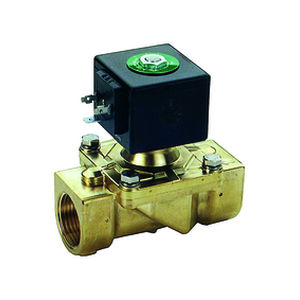

Direct-operated solenoid valve 700 series2-waynormally opennormally closed
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Function
- normally closed, normally open
- Medium
- air, for natural gas
- Body
- threaded, IP65, brass
- DN
Min.: 0.125 in
Max.: 2 in
- Temperature
Min.: -10 °C
(14 °F)Max.: 140 °C
(284 °F)- Pressure
Min.: 0.1 bar
(1.5 psi)Max.: 20 bar
(290.1 psi)
Description
– Positivley controlled
– Pilot control
Electrical connection For PG9/ PG11 connector in line with ISO 4400
Protection class IP65 When using a connector
Materials
Brass housing (CW617N)
Valve seat made of brass (CW617N)
Interior components made of stainless steel
Sealing material made of NBR or FKM
Thread Cyl. thread, DIN EN ISO 228
Application
Compressed air, neutral gases, non-viscous and neutral mediums
Catalogs
ITV Pneumatik
265 Pages
