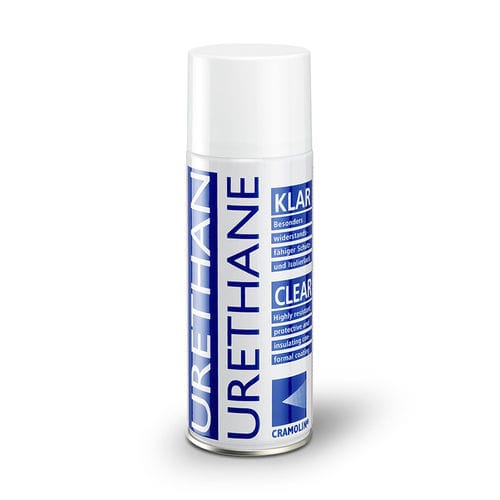

Insulated varnish Cramolin URETHANE CLEAR

electrical insulationaerosolsingle-component

Highly Resistant, Proctective and Insulating Conformal Coating. URETHANE CLEAR is a high-quality single component polyurethane lacquer, protects and insulates PC boards, electrical motors, transformers, electronic equipment and components, offers protection from different environmental conditions such as humidity, salty corrosive vapours, fungus, thermal and mechanical stress. Urethane forms a hard, stable, flexible, non conductive and wear-resistant film with excellent adherence. Technical Data - - - - Appearence - transparent Specific gravity - 0,79 g/cm³ Viscosity - 12s (DIN 53211) Protection - against diluted acids and alkalis humid salty, salty vapors alcohol fungus, thermal and mechanical stress chlorinated solvents Temperature range - -40 - 130 [° C] Dielectric strength - 82,9 kV/mm Dielectric constant - 2,21 (100 Hz) Resistivity - 5 x 1014 Ohm Surface resistance - 2,5 x 1012 Ohm Drying time - approx. 25 min dry to touch approx. 48 h totally cured Unit Sizes - 400 ml 1/5 l Units/Carton - 12 Spray cans (400 ml) 12 Tins (1 l) 4 Tins (5 l)
