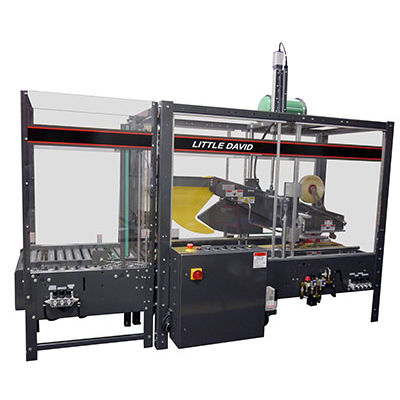

Automatic case sealer LD-16AR

multi-flapadhesive tape

High Performance Packaging Solutions for the Real World The Little David ® LD-16AR is a fully-automatic case sealer designed for processing a random assortment of case sizes. The LD-16AR automatically adjusts for the height and width of the case presented to it by a powered conveyor. Two stage operation accurately measures the case size and preadjusts the top tape head. Cases are top and bottom sealed with 2" or 3" tape using the latest CaseLocker™ 60 tape cartridges. Available with side belt or bottom belt drive. FEATURES OF THE LD-16AR INCLUDE: Fully automatic random top and bottom case sealer Self-centering drive belts Dual mast construction Removable 2" or 3" PST tape cartridges High quality steel structure with powder coat finish Heavy duty bottom belt drive with horizontally mounted ½ HP motor Left to right case flow Interlocking safety gates Indexing gate 150 FPM belt speed 22-1/4" conveyor height adjustable up to 28-1/4" Fully guarded flap "kicker" device Servo driven, ball screw linear actuator High precision ultrasonic sensing and linear transducer to detect case height & width Allen Bradley MicroLogix 800 PLC Powered roller infeed section to pre-sense case width & height (box-sizer) 1.9" diameter rollers on 2-1/2" centers Safety flags at infeed sides of powered infeed section
