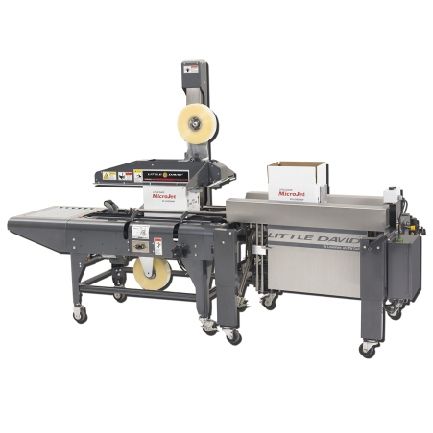

Semi-automatic case erector CF-5

adhesive tape

Real World Case Forming Applications The Little David CF-5 is a semi-automatic case erector capable of handling a variety of box sizes. It has an ergonomic design that adjusts to most conveyor heights using slide and lock legs, making it easily compatible with most sealers. The CF-5 also uses a PLC (Programmable Logic Controller) to drive the boxes, so it doesn’t require any lubrication. The intuitive changeover feature helps to maximize production speeds, increasing the efficiency of the entire system. This system can be easily operated and requires minimal operator training. In order to operate the CF-5: -The box is first formed. -The box is then held in place for the operator to pack. -Next, the box is pushed into a case sealer and is able to be sealed top and bottom. This case sealer takes the place of traditional air logic driven box formers. Not only does the CF-5 reduce the amount spent on labor costs, but its user-friendly workplace design doesn’t require employees to perform the constant, repetitive twisting motion needed to operate previous models. The use of photo eyes promotes safe operation and further reduces opportunities for work-related injuries to occur. All of this makes the Little David CF-5 an ideal solution for real world case forming applications. FEATURES OF THE CF-5 INCLUDE: Programmable Logic Controller (PLC) drive Adjustable slide and lock legs Handles a large range of box sizes No lubrication needed User-friendly workplace design Heavy-duty steel construction Compatible with most sealers
