Spring push-button switch 59 series

sealedmomentaryminiature

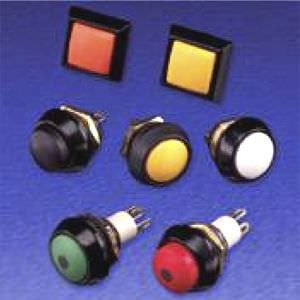

The Series 59 is a range of miniature, momentary action, rugged, IP67 rated, panel sealed pushbutton switches. The series is available with square or round bezel versions, with or without LED status illumination. A choice of body material is provided of either a non-spark zinc alloy or a hard wearing moulded PBT plastic. The small size of the switch, its robustness and panel sealing make it ideal for use in harsh environments. The mechanical life of the switch is 1,000,000 cycles (max), with an electrical life of 500,000 cycles (min). Operating temperature range is -35 to +85 degrees C. Panel thickness required is a minimum of 1.5mm to a maximum of 3.0mm.
