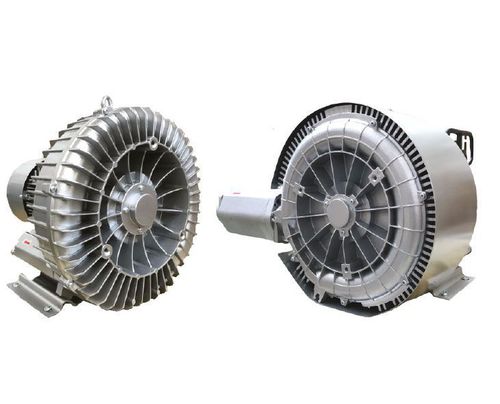

Air blower SC531MFside-channelsingle-stagefor vacuum
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- single-stage
- Applications
- for vacuum, conveying, cooling, drying, filter, for food applications
- Other characteristics
- aluminum, oil-free
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 330 m³/h
(11,653.84 ft³/h)- Operating pressure
Min.: 0 mbar
(0 psi)Max.: 250 mbar
(3.626 psi)
Description
SC531MF
The construction of the side channel blowers is based on the lateral ducts principle. The blowers can operate either as exhauster or compressor fans and are designed for continuous service. Full die-cast aluminium construction grants the maximum sturdiness and flexible operation. No lubrication is needed since there is no contact between static and rotating parts and NSK bearings are permanently pre-lubricated. Dedicated silencers help to achieve a low noise level.
Capacity
Max
m3/h
270
330
