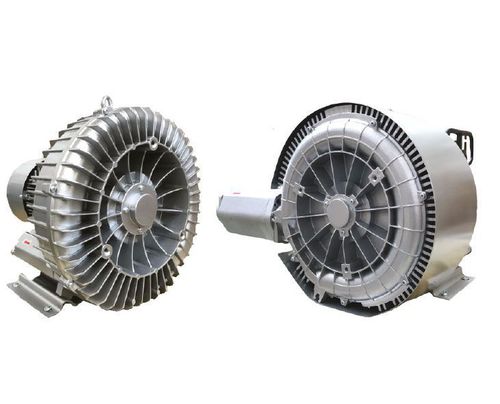

Air blower SC931MFside-channelsingle-stagefor vacuum
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- single-stage
- Applications
- for vacuum, conveying, cooling, drying, filter, for food applications
- Other characteristics
- aluminum, oil-free
- Flow
Max.: 1,600 m³/h
(56,503.467 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Operating pressure
Max.: 300 mbar
(4.351 psi)Min.: 0 mbar
(0 psi)
Description
SC931MF
The construction of the side channel blowers is based on the lateral ducts principle. The blowers can operate either as exhauster or compressor fans and are designed for continuous service. Full die-cast aluminium construction grants the maximum sturdiness and f exible operation. No lubrication is needed since there is no contact between static and rotating parts and NSK bearings are permanently pre-lubricated. Dedicated silencers help to achieve a low noise level.
Capacity
Max
m3/h
1350
1600
