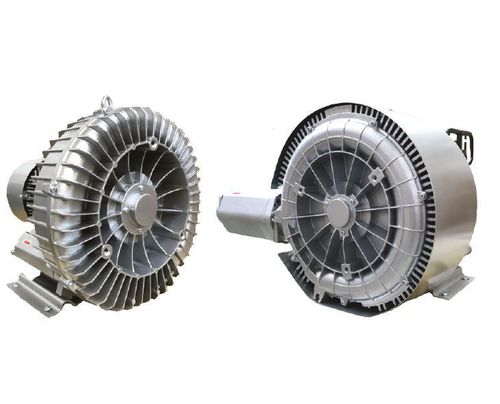

Air blower SC502SFside-channelsingle-stagefor vacuum
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- single-stage
- Applications
- for vacuum, conveying, cooling, drying, filter, for food applications
- Other characteristics
- aluminum, oil-free
- Flow
Max.: 276 m³/h
(9,746.848 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Operating pressure
Max.: 450 mbar
(6.527 psi)Min.: 0 mbar
(0 psi)
Description
SC502SF
The construction of the side channel blowers is based on the lateral ducts principle. The blowers can operate either as exhauster or compressor fans and are designed for continuous service. Full die-cast aluminium construction grants the maximum sturdiness and flexible operation. No lubrication is needed since there is no contact between static and rotating parts and NSK bearings are permanently pre-lubricated. Dedicated silencers help to achieve a low noise level.
Capacity
Max
m3/h
230
276
