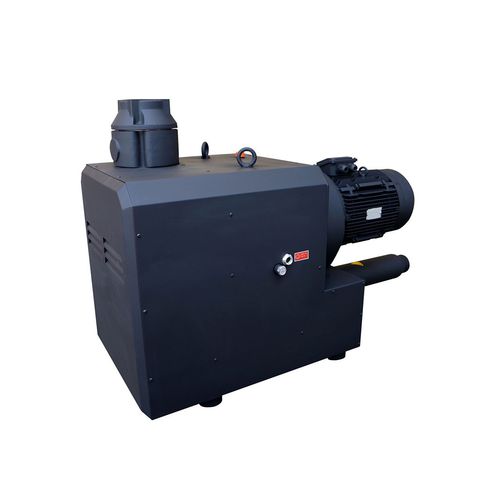

Gear vacuum pump ICV seriesdrysingle-stagefor medical applications
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Lubrication
- dry
- Number of stages
- single-stage
- Applications
- for medical applications, for the plastics industry, for pneumatic conveying, for packaging
- Ultimate vacuum
Max.: 50 mbar
(0.73 psi)Min.: 0 mbar
(0 psi)- Flow rate
Max.: 600 m³/h
(21,188.8 ft³/h)Min.: 0 m³/h
(0 ft³/h)
Description
ICV - 155, 255, 305, 405 & 515
The ICV-ICP series pumps are dry contact-less vacuum and compressor pumps with modular constructions consisting of compartments: pumping and gear chambers are separated by labyrinth seals. When the two claws rotate in opposite direction the air is sucked in the pumping chamber, compressed and discharged under pressure.
In the gear chamber two gears with appropriate oil lubrication are placed for synchronizing the claws rotation.
A built in anti-suck back valve installed in inlet flange will prevent the air from flowing back into the vacuum chamber when the pump is shutdown. The pumps are directly driven by a flanged motor through a coupling.
Max
Capacity
m3/h
150
180
250
300
300
360
400
480
500
600
