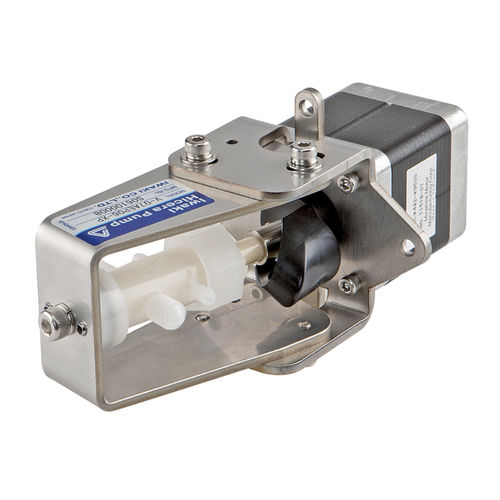

Piston pump V

for chemicalselectricself-priming

High precision micro dosing All main parts (piston & cylinder) are made of finest ceramic produced with high precision and micro tolerances. Therefore a repeatability of ± 1 % is possible to achieve. By changing the angle of the pump head, the dosing capacity can be continously set between 0 and maximum. Superior chemical resiatnce To handle as many chemiclas as possible, all wet end parts are exclusively manufactured of high resistant materials (SiC, PTFE & SCS14). Dosing into a vacuum & pumping out of high pressure areas By using a valve less construction it is possible to dose a constant flow directly into a vacuum. Also a constant volume can be dosed, if the priming side is pressurized. Handling viscous liquids and with solid substances The unique valveless construction together with the resistance to tear and wear of SiC enable the handling of abrasive liquids as well as liquids including solid substances. A constant flow of high viscous liquids up to 20.000 mPas is possible. Compact construction These lightweight and compact pumps can be installed vertically and horizontally. By changing of the direction of motor rotation suction and discharge side can be changed. Simple construction Due to the simple design with only a few parts assembling, demounting and cleaning is easily to proceed.
