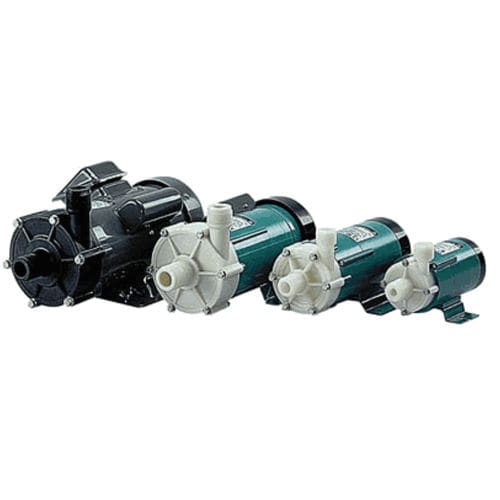

Chemical pump MD seriesmagnetic-drivecentrifugalstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- for chemicals
- Operation
- magnetic-drive
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- chemical process
- Material
- PP
- Other characteristics
- compact, flow
- Flow
Max.: 135 l/min
(35.66323 us gal/min)Min.: 0 l/min
(0 us gal/min)- Head
Max.: 14.3 m
(46'10" )Min.: 1.8 m
(5'10" )- Power
Max.: 365 W
(0.5 hp)Min.: 22 W
(0.03 hp)- Length
Max.: 256 mm
(10 in)Min.: 179 mm
(7 in)- Width
Max.: 120 mm
(4.72 in)Min.: 95 mm
(3.74 in)- Height
Max.: 141 mm
(5.55 in)Min.: 105 mm
(4.13 in)- Weight
Max.: 3.9 kg
(8.6 lb)Min.: 0.9 kg
(1.98 lb)
Description
Extremely reliable, compact mag. drive centrifugal pumps
Due to the sealless construction a contamination of the surrounding area is avoided. Also corrosion, which could be depending on construction, does not appear. Therefore this series is best suited for the machinery installation. Already the standard type offers best chemical resistance by the choice of the used materials.
Special models are available for high heads (MD-Z) or more flow rate (MD-X). The economic laying is thereby possible, that the pump performance is equal to the next bigger standard type. From size 15 both hose and thread connection are available.
Catalogs
Magnetic drive pumps MD series
12 Pages
