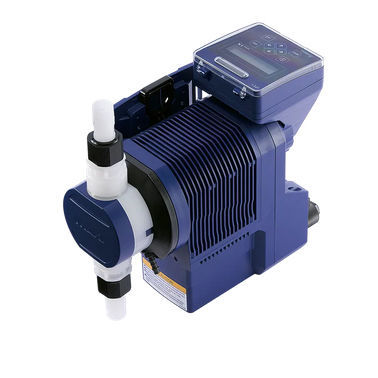

Diaphragm pump IX-B

for chemicalsbrushless DCstationary

The IX-B pumps use brushless DC (BLDC) motors to control the pump stroke speed. Many similar metering pumps use a stepper-motor based design, however the efficiency of the BLDC motor provides a higher power output in a smaller package and allows the IX-B pumps to achieve 45L/H discharge flowrates. Degassing valve unit Design (Patent Pending) One of the most advantageous features of the IWAKI IX Series Metering Pumps is the excellent degassing ability due to their proprietary valve unit design. The IX-B pumps retain this feature creating an entire pump line that will not gas lock and has no priming issues! Flexible Installation (Patent Pending) The IX-B Pumps have been designed to be installed into various locations. The control unit can easily be repositioned by customers on-site. The pump can also be relocated from base mounted to wall mounted without any extra parts required. Improved Chemical Resistance Liquid End materials of construction remains PVDF, a highly chemical resistance material, and a choice of elastomers (FKM or EPDM). New is a non-elastomer, solid PTFE diaphragm providing optimal resistance to chemical gas penetration and better all-around chemical resistance. High Turndown Ratio and High Accuracy The turndown ration of the IX-B series improves to 1000:1 via stroke rate control by the BLDC motor. The pumps are 1% repeatable across most of the control range. Minimum flow on the IX-B series is 0.0075L/H. LED Status Bar A large LED status bar provides simple visual indication of operating conditions at a glance. It is easily visible to see the pump status at a distance or in dark locations.
