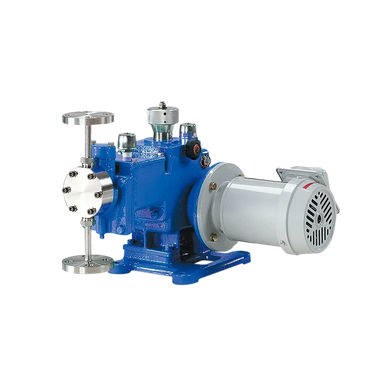

Diaphragm pump AX-Pfor chemicalswith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial
- Applications
- metering
- Other characteristics
- mechanical, large, built-in, micro
- Flow
Min.: 0.012 l/min
(0.00317 us gal/min)Max.: 26.1 l/min
(6.89489 us gal/min)- Pressure
Min.: 0.6 MPa
Max.: 35 MPa
- Power
Min.: 0.2 kW
(0.27 hp)Max.: 3.7 kW
(5.03 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 100 °C
(212 °F)
Description
High pressure micro feeding at Max. 35.0 MPa with high accuracy. Extremely high grade performance having metering accuracy within ±1%（F.S.) and linearity within ±2%（F.S.).
Durability and reliability
Highly reliable for long-term continuous operation due to indigenous hydraulic system and drive parts with tried and tested built-in SL crank.
High cost performance
In addition to reducer, the mechanical efficiency of pump is fully overhauled and improved. Cost performance of the pump is improved by mounting large capacity pump head and standardizing high speed rotation type parts. (Compared with our products)
Catalogs
No catalogs are available for this product.
See all of IWAKI‘s catalogs
