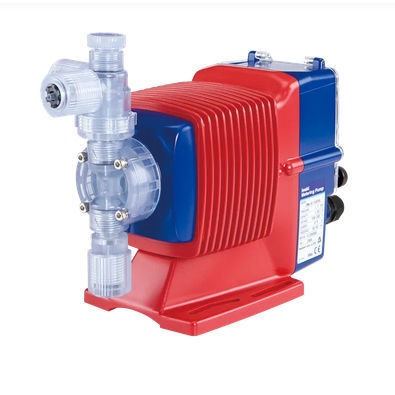

Diaphragm pump EWN-Wwaterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- metering, for control, adjustment, cooling tower
- Voltage
- 240 V
- Protection level
- IP65
- Other characteristics
- adjustable, large, flow
- Flow
Min.: 0.038 l/min
(0.01004 us gal/min)Max.: 0.42 l/min
(0.11095 us gal/min)- Pressure
Min.: 0.2 MPa
Max.: 1 MPa
- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)
Description
Our latest electromagnetic metering pump features water quality control functions and multivoltage operation
Features of EWN-W series
Controller variation
WPO(pH/ORP), WEC(conductivity), WCT(cooling tower) and WCL(Free residual chlorine) controllers are available. Also, the extra large LCD improves legibility and ease of operation.
High resolution
Stroke speed adjustment in 1spm increments allows fine flow adjustment between 1 and 360spm in continuous chemical feeding.
Multi voltage
The EWN-W can be used in all countries thanks to the universal power supply(100-240VAC).
Adjustable tube fitting
Newly-designed adjustable tube fittings eliminate tube twisting when fastening.
Pump body
The molded pump body with a minimum of sealing surfaces meets a high level (IP65 equivalent) of both waterproofness and dustproofness.
