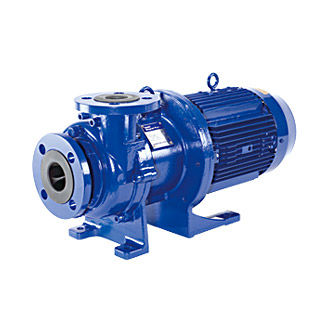

Chemical pump MXM

airmagnetic-driveimpeller

Magnetic drive pumps with an excellent balance of features and performance Features of MXM series Better withstanding difficult operating conditions The proven non-contact system and self-radiating bearing structure deliver substantial improvements in tolerance of dry running and poor suction conditions. Self radiation structure Through heat-dispersion holes provided in the fixed portions of the impeller and the magnet capsule, the liquid around the spindle and the bearing is forced to circulate so that heat generated by sliding can be reduced effectively. Thus, thermal deformation and melt are prevented. Non contact system Unlike conventional magnetic drive pumps, the MXM series are designed to prevent contact between the bearing and the rear thrust faces, even during dry running or air ingress into the suction. By preventing contact, the rear thrust ring minimizes heat generation to prevent melting of plastic parts.
