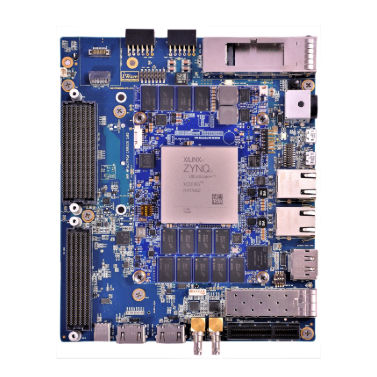

High-speed developer's kit iW-RainboW-G35D

iWave's Zynq Ultrascale+ SoC Development kit comprises of Xilinx's Ultrascale+ MPSoC SOM and Ultra-High-Performance carrier card. The SOM is equipped with 64-bit 4GB DDR4 RAM with ECC for PS & 64-bit 4GB Dual DDR4 RAM for PL. The Zynq Ultrascale+ MPSoC development kit carrier board supports required set of features like FMC+ (HPC), FMC (HPC), FireFly, QSFP, SFP+, 12-Pin Pmod, and HDMI- IN/OUT connectors to validate Zynq Ultrascale+ MPSoC high-speed PL interfaces and PCIe x4, SATA, USB-Type-C, Display Port, Gigabit Ethernet and SDI Video IN/OUT on-board connectors to validate the Zynq Ultrascale+ MPSoC high-speed PS interfaces. Zynq Ultrascale+ MPSoC with 1143K Logic Cells PS-GTR Transceivers x 4 @ 6Gbps PL-GTH Transceivers x 32 @ 16.3Gbps PL-GTY Transceivers x 16 @ 32.735Gbps FMC+ HPC Connector FMC HPC Connector QSFP & SFP+ Connector FireFly Connector PCIe x4 Lane Connector Dual 12-Bit Pmod Connectors HDMI- IN/OUT SDI Video IN/OUT
