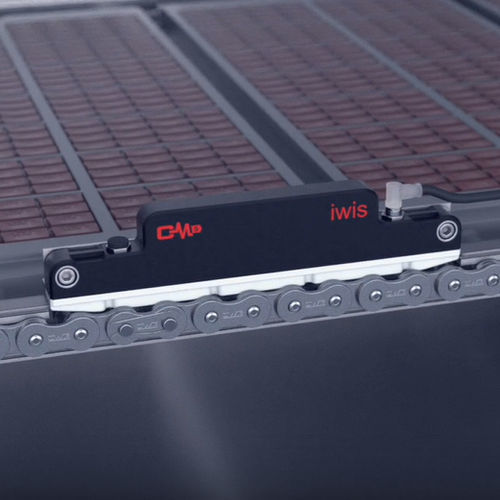

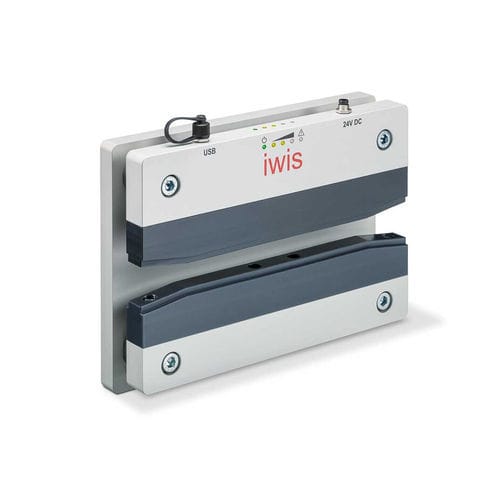

Condition monitoring system CCM-S

for chainsUSBsmart

With additional sensors and interfaces, measures the wear elongation of chains during use and, in this way, helps maintenance staff recognise in good time when the chain has to be replaced due to wear elongation. •Digitalisation interface •Ready-to-install plug-and-play principle •Optimised design Intelligent chain monitoring • Gives maintenance staff time to (re)act! • Reduced downtimes for production plants or machinery • No risk to promised delivery dates – no interruption of the logistics chain • Prevents financial losses caused by interruptions to production • Monitoring of precision chain applications • "Plug and Play" principle applies – does not require ¬calibration, etc. • Wear- and impact-resistant sliding shoe • Stable, leakproof plastic housing (Protection class: IP67) Operating conditions • Normal industrial environmental conditions (The CCM-S system must be specially configured for tough or highly abrasive conditions!) • Operating temperature range: 0 °C to 70 °C (32 °F to 160 °F) • In the case of chains with attachments on both sides or ¬extended pins, iwis must carry out a separate inspection. • Protection class: IP67 • Insensitive to non-magnetic contamination • If the device is to be attached to a customer interface, ¬we recommend that damping elements should be fitted (e.g. between the housing and the mounting plate). • We recommend that the CCM-S system is installed at the tight strand; Installation at the slack strand is also possible under certain circumstances • USB connection to PC interface (Connection via USB connector 2.0 Type A) • External power supply as per IO-Link specification: 18-30V
