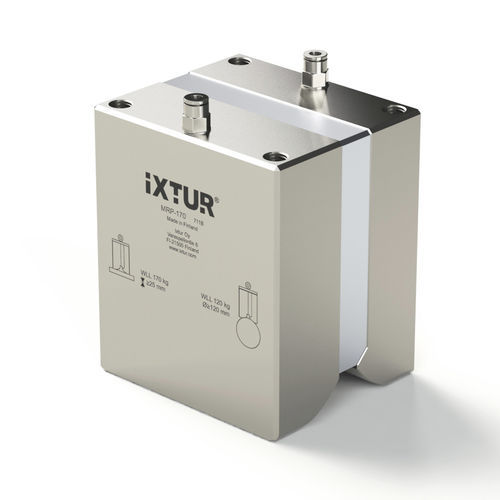

Neodymium permanent magnet MRP-170

block

Ixtur MRP-170 and MRP-170K are pneumatically controlled neodymium permanent magnets that are suitable for gripping parts with different shapes. The magnets do not change their magnetic state in case of loss of compressed air. The compact size combined with the strong gripping force provides high versatility. Ixtur MRP magnets are maintenance-free and have a short cycle time, allowing high production speed and efficient automation. MRP magnets are suitable for flat and round parts, and for both steel and cast iron. Ixtur magnets can handle solid and perforated material and they can be used in any orientation needed, so it’s possible to handle objects with various shapes and angles. Residual gripping capacity The residual gripping capacity, i.e. the gripping capacity when the magnet is OFF, varies based on the material and structure of the gripped part. With MRP-170, in extreme cases, parts up to 30 kg may stay attached. The residual capacity is greatest as long as the part continously stays in contact with the magnet after the magnet has been turned from ON to OFF. MRP-170K is a model of the magnet, which has reduced residual gripping capacity: 3 kg with flat surfaces and 8 kg in extreme cases. If the amount of residual capacity is critical to the application, pretesting with the actual part is recommended.
