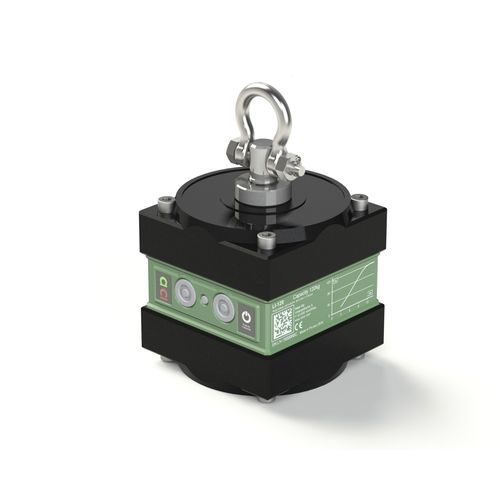

Manually switched electro lifting magnet LI-120

handlingcompactbattery

Ixtur LI-120 is a battery-powered, electropermanent magnet, which has a fully automatic operation. LI-120 has a long battery life and it will not change its magnetic state even if the battery dies. LI-120’s automatic control and compact size makes working efficient. LI-120 provides a high level of versatility and efficiency due to its wireless, battery-powered operation that lasts 1500 lifts with one charge. Due to the magnet’s automatic operation, there is no need for the crane operator to be next to the work piece that is being lifted. A remote is not needed, so using LI-120 leaves hands free for other tasks. LI-120’s strong magnetic holding force is created with a permanent magnet. The switching between the magnet’s states (“hold/release”) is controlled internally with a short electric pulse. Maintaining either of the two states doesn’t consume energy, which makes LI-120 energy-efficient and gives it a long battery life. LI-120 maintains its current magnetic state even if it runs out of battery: the load being lifted will stay attached to the magnet. Lifting capacity: 120 kg Size: 125 x 125 x 200 mm Weight 6.7 kg Available in Europe and in the USA
