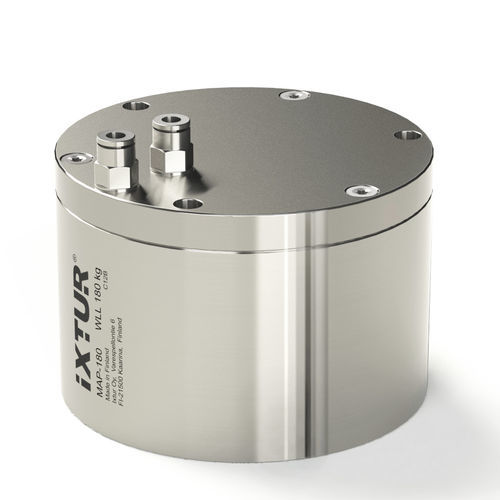

Neodymium permanent magnet MAP-180

cylindrical

Ixtur MAP magnets are pneumatically controlled neodymium permanent magnets, which have excellent size to gripping capacity ratio and low residual gripping force. The magnets do not change their magnetic state in case of loss of compressed air. The compact size combined with high gripping force provides high versatility. MAP series magnets are maintenance-free and have short cycle time, allowing high production speed and efficient automation. The magnets can be used in various applications: lifters, robot grippers, fixtures, production automation, etc. The nominal gripping capacities can be obtained with the material thicknesses stated above. The magnets can be used with thinner materials, please see the graphs on the right for gripping capacities for different material thicknesses. The given gripping capacities are valid for mild steel (S355). MAP-120R’s gripping surface is optimized for parts that do not fully cover the whole gripping surface of the magnet, e.g. cylinders, pipes and irregularly shaped objects. Requirements for compressed air: Water separation, particle filter ≤ 5 µm Lifting capacity: 180 kg Size: Ø120 x 82mm Weight: 5.8 kg Residual Gripping capacity: 6 kg
