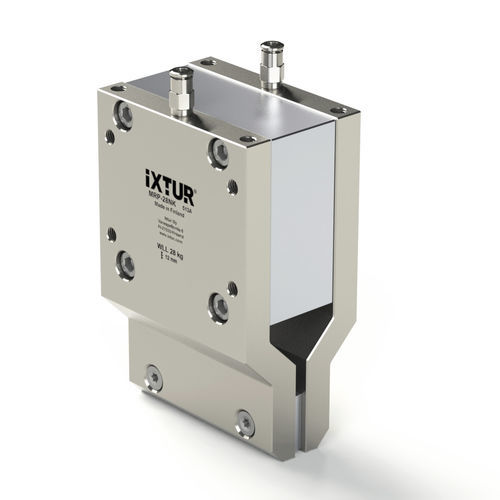

Neodymium permanent magnet MRP-28NK

block

Ixtur MRP-28NK is a pneumatically controlled neodymium permanent magnet that is suitable for gripping parts with different shapes and various sizes. The narrow gripping area combined with the low residual gripping capacity provides high versatility. Ixtur magnets are maintenance-free and have a short cycle time, allowing efficient automation and high production speed. Ixtur MRP-28NK magnets are suitable for flat and round parts, and for steel and cast iron. The magnets can grip solid and perforated material and they can be used in any orientation needed, so it’s possible to handle objects with various shapes and angles. Residual gripping capacity The residual gripping capacity, i.e. the gripping capacity when the magnet is OFF, varies based on the material and structure of the gripped part. In extreme cases, parts up to 1.0 kg may stay attached. The residual capacity is greatest as long as the part continuously stays in contact with the magnet after the magnet has been turned from ON to OFF. If the amount of residual capacity is critical to the application, pretesting with the actual part is recommended. Lifting capacity: 28 kg Size: 80 x 55 x 126 mm Weight: 2.6 kg Residual Gripping capacity: 1 kg
