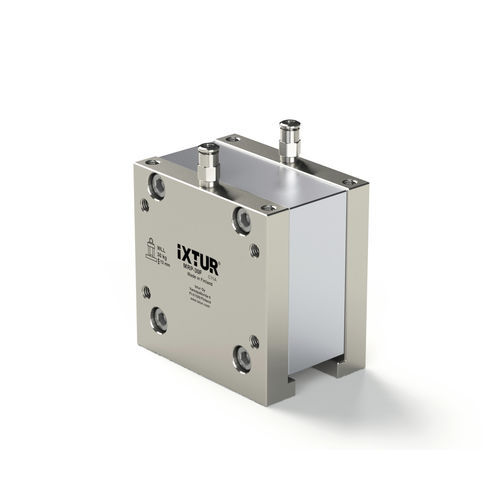

Neodymium permanent magnet MRP-30F

square

Ixtur MRP-30F is a pneumatically controlled neodymium permanent magnet that is suitable for gripping parts with different shapes. MRP-30F is optimized for loads, which are not in contact with the entire gripping area of the magnet. However, in order to achieve a proper grip, it is necessary to at least partially touch both magnetic poles of the magnet. MRP-30F does not change its magnetic state in case of loss of compressed air. The compact size of the magnet combined with the strong gripping force provides high versatility. Ixtur MRP magnets are maintenance-free and have a short cycle time, allowing high production speed and efficient automation. Residual gripping capacity The residual gripping capacity, i.e. the gripping capacity when the magnet is OFF, varies depending on the material and structure of the gripped part. In extreme cases, parts up to 4 kg may stay attached. The residual gripping capacity is greatest as long as the part continously stays in contact with the magnet after the magnet has been turned from ON to OFF. If the amount of residual gripping capacity is critical in the application, pretesting with the actual part is recommended. Lifting capacity: 30 kg Size: 80 x 55 x 80mm Weight: 1.9 kg Residual Gripping capacity: 4 kg
