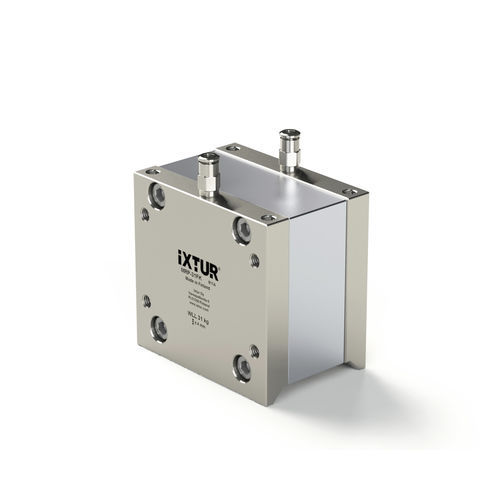

Neodymium permanent magnet MRP-31FK

square

The compact size combined with the strong gripping force provides high versatility. Ixtur MRP magnets are maintenance-free and have a short cycle time, allowing high production speed and efficient automation. MRP-31F and MRP-31FK magnets are designed for flat parts, and for steel and cast iron. For the thinnest plates (t < 2 mm), the gripping capacity can be increased with pole extensions. Ixtur magnets can handle solid and perforated material and they can be used in any orientation needed, so it’s possible to handle objects with various shapes and angles. The magnets do not change their magnetic state in case of loss of compressed air. Magnets can be used in various applications: lifters, robot grippers, fixtures, production automation, etc. Lifting capacity: 31 kg Size: 80 x 55 x 76 mm Weight: 1.74 kg Residual Gripping capacity: 0.15 kg
