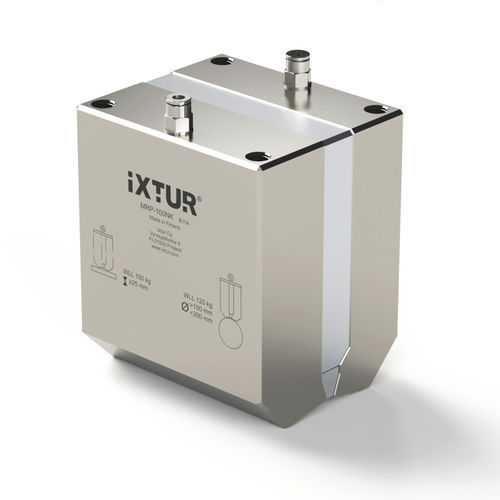

Neodymium permanent magnet MRP-100NK

block

Ixtur MRP-100NK is a pneumatically controlled permanent magnet that is suitable for gripping parts with different shapes. The MRP-100NK is optimized for picking up small cylinders that are close to each other. The magnet is able to pick up a single Ø50 mm cylinder, even if the cylinders are next to each other. The MRP-100NK also grips flat objects. The magnet is a versatile gripper for various loads, including narrow ones. The MRP-100NK does not change its magnetic state in case of loss of compressed air. Ixtur MRP magnets are maintenance-free and have a short cycle time, allowing high production speed and efficient automation. Residual gripping capacity The residual gripping capacity, i.e. the gripping capacity when the magnet is OFF, varies depending on the material and structure of the gripped part. In extreme cases, parts up to 5 kg may stay attached. The residual gripping capacity is greatest as long as the part continously stays in contact with the magnet after the magnet has been turned from ON to OFF. If the amount of residual gripping capacity is critical in the application, pretesting with the actual part is recommended. Lifting capacity: 100 kg Size: 120 x 103 x 140 mm Weight: 11 kg Residual Gripping capacity: 5 kg
