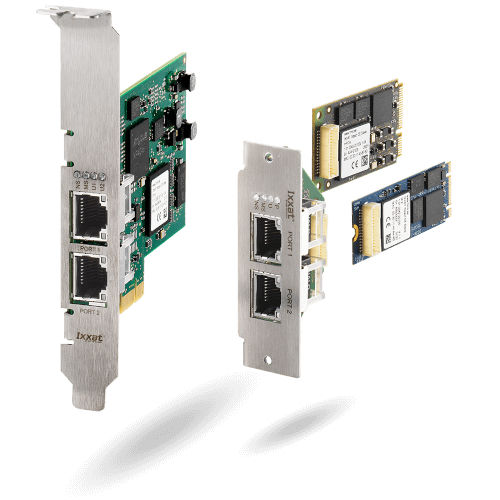

PICe interface board 1.01.0320.25110

EthernetPowerlinkindustrial

The dedicated Powerlink version of the Ixxat INpact comes with a pre-installed network protocol. It enables the easy connection of PC-based Powerlink Slave applications to the industrial network and is based on proven Anybus and Ixxat technology. Powerlink Features Supports Ethernet Powerlink V2.0 Communication Profile Specification version 1.2.0 (Controlled Node) Integrated hub 100 Mbit/s, half duplex operation 200 µs cycle time Supports ring redundancy Customizable identity information Supports 1 TPDO and 1 RPDO (each can hold 1490 bytes) Up to 57343 ADIs Adaptable XDD file included Supports segmented SDO transfer PollResponse Chaining Multiplexing Support for SYNC functionality Easy Programming The INpact card comes with a comprehensive C-API based driver package for Windows – enabling simple and rapid development of customer-specific applications – and with drivers for Linux. Operating systems such as RTX, Intime, VxWorks and QNX are supported upon request.
