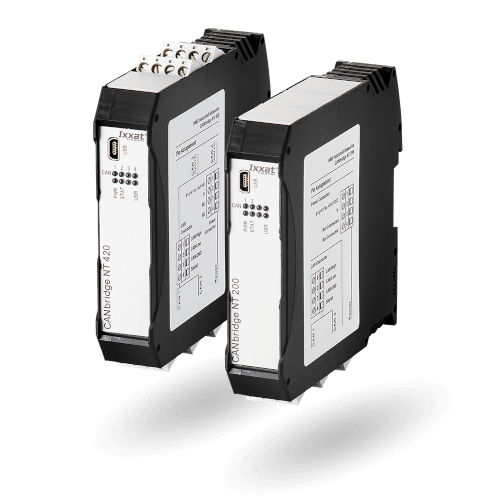

Communication gateway CANbridge NT 200

securityCANIP20

The CANbridge NT is offered in two versions, as CANbridge NT 200 with 2 classic CAN channels and as CANbridge NT 420 with 4 CAN channels, where 2 channels can be switched between CAN and CAN FD. Both devices allow the easy coupling of CAN (CAN FD) networks, including networks with different bit rates or frame formats (11/29 bit identifier). The bridges/routers have a powerful microcontroller that can perform message filtering, ID translation and data multiplexing (e.g. required for CAN FD to CAN message conversion), at this even bursts at higher data rates can be processed without message loss. FEATURES Up to 4 CAN (2 CAN FD) channels in one device Powerful filter, ID translation, data mapping and multiplex functionality Execution of pre-defined actions using event-triggered "Action Rules" Programming of any kind of action rules using LUA Configurable security levels for device access (configuration or firmware upload) Windows configuration tool for easy configuration via USB BENEFITS Easy coupling of CAN and CAN FD systems and devices Cost savings due to simple wiring Allows system expansion and tree/star topologies Increased system reliability Line protection by galvanic isolation
