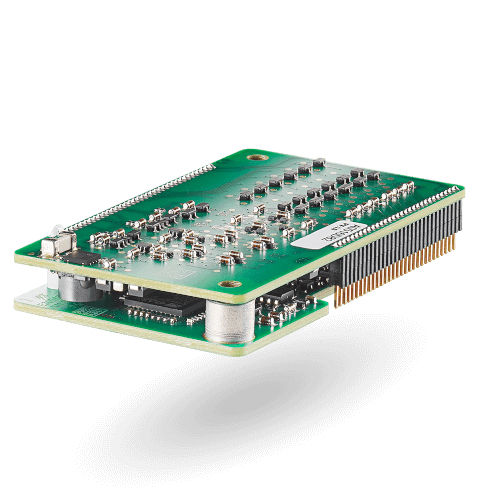

Digital I/O module Safe T100/CS

EtherNet/IPFieldbussafety

The Ixxat Safe T100/CS offers device manufacturers an easy way to control safe I/O signals using a safe fieldbus protocol. The module meets the SIL3 safety requirement level as defined by IEC 61508 and Performance Level PLe / Category 4 in ISO 13849-1. Safe T100/CS is primarily designed to be used together with Anybus CompactCom, where the safety communication uses the black channel principle through Anybus CompactCom. For CIP Safety, CompactCom takes over the EtherNet/IP Adapter functionality and the safety module implements the CIP safety layer and safe control of three dual-channel inputs as well as one dual-channel output. The module's very compact size and flexible safety I/O routing make it perfect for integration into customer specific device solutions. Features and Benefits All necessary functions and methods to achieve SIL-3/Performance Level e (PLe) on one board — simplifies customer board design IOs configurable for single and dual channel use Pre-certified concept and hardware for easy re-certification of the final device Provision of full documentation set including TÜV type approval Direct connectivity to Anybus CompactCom module for non-safe fieldbus communication - safe and non-safe communication on the same wire
