Plymoth Super-Mesa is a modern Backdraft Table with built in regulating Damper. 1m and 1.4m Models.
Dust, Fume and Gases
Plymoth Super-Mesa is suitable for welding and grinding. It can also be used in many other applications where dust, fume and gases are a problem.
Unique regulating Damper
Plymoth Maxi-Mesa is as standard equipped with a regulating damper which makes it possible to adjust the width of the vertical openings of the backdraft panel. You can quickly adjust the total air volume between backdraft and downdraft with a handle on the front side.

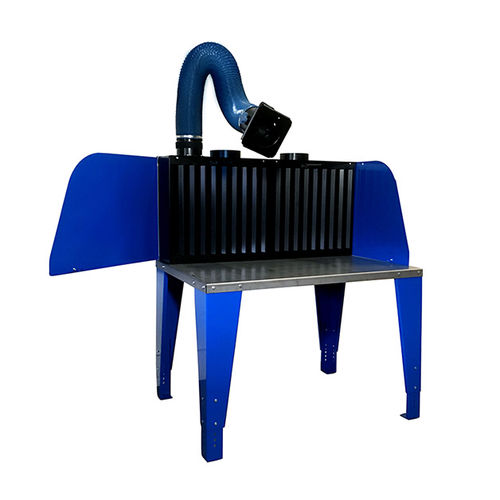

Extraction Arm
For heavy welding the Maxi-Mesa can be equipped with a Flexi FLB 1.5m extraction arm. Thanks to the unique regulating damper the total air volume can be divided between backdraft, downdraft and extraction arm.
Good Grounding. The table surface is just oiled to give a good ground when it is used for welding.
Strongly designed. Plymoth Super-Mesa is designed of 2 and 3mm steel-sheet. The table height can be adjusted from 800-950mm. The side panels can be opened for long objects. Suitable air volume for 1m table is 1300-1700m3/h and for 1.4m table 1500 2200m3/h. It shall be connected with an external fan and extraction system. Connection diameter is 199mm outside.
