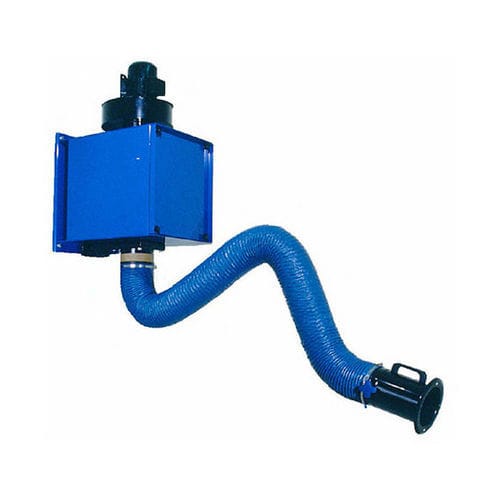

Wall-mounted fume extractor Wall-Flex

weldingsolderingcartridge

Welding/Soldering Fume and Light Dust Wall-Flex is designed for use with Flexi Extraction Arms. Extracts Welding/Soldering Fume and Light Dust before it is inhaled by the operator. Easy to mount with just 4 bolts into a wall. The F9 filter cartridge has an efficiency of up to 99%. The fan is mounted on top of the filter box on an included fan holder. Order fan and Extraction Arm separately. Filter Cartridge 12m2. Access to the maintenance-free, replaceable F9 cartridge filter is easy and changing it takes just a couple of minutes. An activated carbon filter fleece for light gases is also available. A carbon filter holder is then needed (P_085). Wallbracket and Fan Holder. Wall-Flex is as standard equipped with a strong wallbracket. The fan is to be mounted on the top of the included fan holder. Flexi FLT Extraction Arm is to be mounted on the bottom side of the filter box (1.5-3m Arms). No unnecessary holes have to be made in the wall. Wall-Flex can be connected to a central extraction system instead of a fan on the top. A diameter 160 mm outlet adaptor is included.
