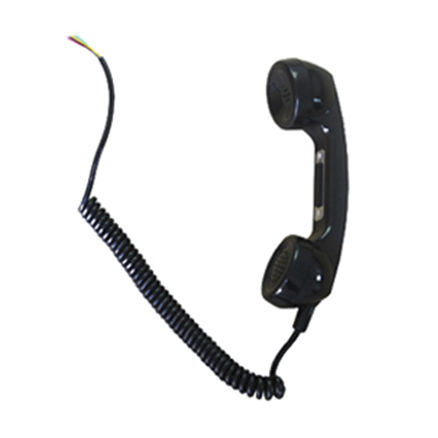

Telephone handset JR-HS-03

– Handset handle and cap material: PC/ABS – Handset type: Standard Receiver – Wiring: Six 24 gauge Teflon insulated wires (2 for receiver, 2 for transmitter, 2 for push button) – Includes cord which is anchored to handset handle. The cord has a pull test load of approx. 200 kgs – Available Cord Lengths: 30 cm (could be customized Item: - Electret Condenser Microphone Model Number: - Microphone SG9070 Frequency range - 100－8000Hz Sensitivity - 56±2 dB Output Impedance - Low Impedance Directivity - Unidirectional Standard operation voltage - 4.5V Sensitivity reduction - Within -3dB at 1.5V Current consumption - Max 0.5mA Operation Temperature - -30℃ to +70℃ Storage Temperature - -40℃ to +85℃ Weight - Less than 1.0g Handset receiver specification RECEIVER Model Number: - R3518M150H ITEMS - SPECIFICATIONS - CONDITIONS IMPEDANCE - 150 ± 20% ohm ( at 1 KHz,60mV input ) SOUND PRESSURE LEVEL - 97 ± 3 dB SPL ( at 1 KHz, 0dBSPL = 20μPa )
