Telephone booth JR-TH-01
acousticGRP

telephone booth
telephone booth
telephone booth
telephone booth
telephone booth
Add to favorites
Compare this product


Characteristics

Type
telephone, acoustic
Other characteristics
GRP

Description

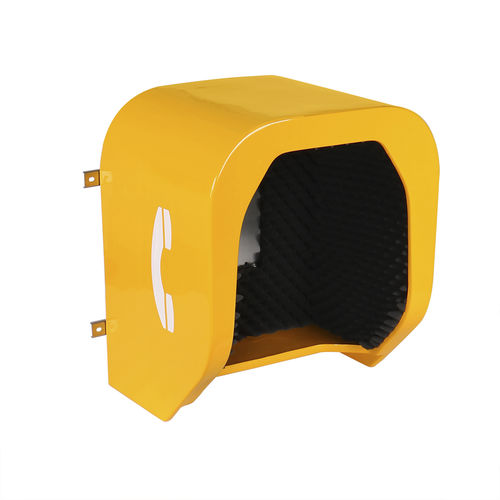

For external or internal use, the JR-TH-01 is extremely robust and weatherproof. Inside the hood's outer shell is a perforated polypropylene lining that houses 50mm nonhygroscopic acoustic insulation. The hood is designed to attain a high level of noise reduction of up to 23.9dB. The hood is fixed to the wall via two stainless steel mounting brackets that are secured through the hood's back wall to the inner telephone apparatus plate. This enables a load of up to 60 kgs to be safely mounted on the plate. The plate is pre-drilled to accept many telephones. Beneath the plate is a 304 stainless steel shelf, white paint finish, with a cable entry slot provided. Specifications: ● Dimensions – H780mm W680mm D500mm ● Weight - Approx 20Kg ● Stock Colour - Yellow (RAL 1006), Others to order ● Outer Shell - General Purpose Resin continuous filament mat - Fire Resistance to BS476 Part 7 Class 1 Surface Spread of Flame ● 304 Stainless Steel Shelf, powder coated orange ● Acoustic Insulation - 50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3 ● Insulation Liner - White Perforated Polypropylene 3mm thickness ● Apparatus plate - 304 Grade Stainless Steel, 2mm thickness, powder coated white ● Mounting Brackets – 304 Grade Stainless Steel, 6mm thickness ● Boxed Dimensions - 80 x 70 x 55cm ● Boxed Weight - Approx. 30kg
