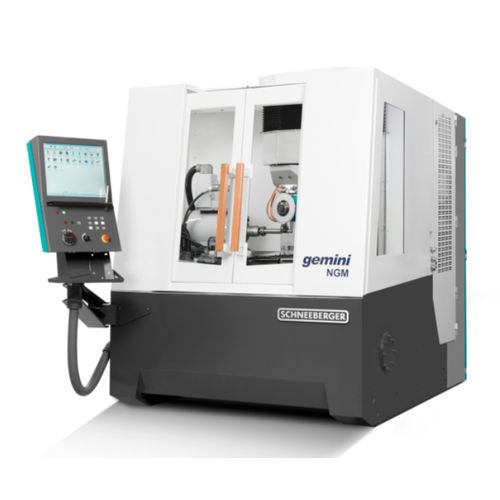

Tool grinding machine gemini NGM TAP

CNC6-axisdirect-drive

geminiTAP is the highly dynamic 6-axis CNC grinding machine for the serial production of threading tools with the capability of carrying out the complete processing of flutes, point, lead angle and thread forms in a single clamping. Maximum precision is guaranteed with a total of 6 CNC axes, hydrostatic guides with linear and direct drive motor technology. • Production: Taps, forming taps, thread mills • Materials: HSS or carbide • Diameter: 1 – 60 mm, any profile • Spiral angle: No restriction • Length: Up to 250 mm Numerous accessories for the application spectrum and increased productivity: 6-axis robot for workpiece loading with capacity for 2, 4, or 10 pallets Dressing unit for dressing profiles and sharpening Manual or hydraulic tailstock Manual, hydraulic steady rest Collet chucks, clamping mandrel Coolant filtration system Exhaust air filter CO2 extinguishing system Axes: Z-axis, 370 mm stroke, vertical column, linear motor, resolution 10 nm A-axis, workpiece carrier, free rotation, direct drive, resolution 0.0001°, 400 rpm B-axis, 315°, grinding head rotation, direct measuring system, resolution 0.0001° V-axis, 6 mm stroke, oscillating axis, linear motor, hydrostatic guideway, resolution 10 nm Control: FANUC 31i B5, 6 axes simultaneously 19" colour monitor with keyboard and touch screen, USB 3.0 Loader : Maximum speed and flexibility with the 6-axis FANUC robot / 2 300 x 300 mm pallets Weight: 6'000 kg (13'228 lb) Supply Tailstock: mobile dividing attachment for referencing via the tool tip, clamping force up to 4400 N Truing unit 1: CNC-controlled, for truing the profile disc, suitable for full mould roll
