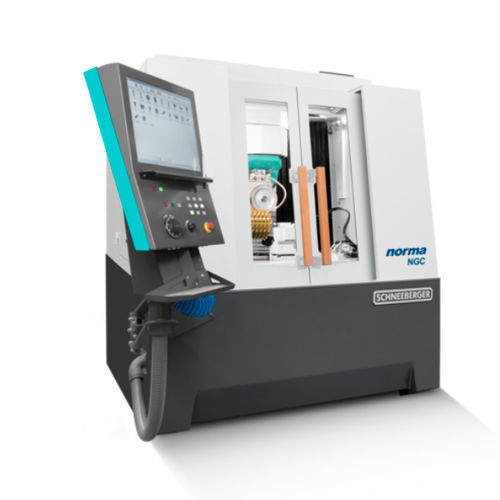

Milling cutter grinding machine norma NGC 750

for gearsuniversalCNC

The norma NGC-750 is the universal 5-axis CNC tool grinding machine, ideally suited to the production and regrinding of cutting tools. Complete processing around OD and face, up to 600 mm cutting length, diameter up to 400 mm, maximum workpiece length that can be clamped 800 mm. Cutting tools such as end mills, ball nose cutters for mold making, high-performance drills, reamers, profile end mills, indexable profile inserts in HSS, carbide gear cutting tools. There are specific software, grinding processes and clamping systems for regrinding gear cutting tools, end mills, pinion cutters and bevel gear cutters. Production grinding of knives for the paper, food and plastics industries. Wheel-shaped workpieces with special clamping and automatic loading. Accessories for individual expansion of the application spectrum and for increasing productivity. Numerous accessories to expand the application range and productivity of the machine. Grinding wheel pack loader Measurement system in all axes Manual or hydraulic tailstock Manual, hydraulic or CNC controlled steady rest, following the grinding point Collet system, clamping mandrel, indexable tool holder Coolant filtration system Exhaust air filter CO2 extinguishing system Axes: Z-axis: 325 mm, Vertical column, roller guide, ground recirculating ball screw, resolution 50 nm A-axis: ISO 50 tool carrier, resolution 0.0001° C-axis: 380°, Rotation of the grinding head, resolution 0.0001° Control: FANUC 31i-B5, 5 controlled axes 19” TFT color monitor with keyboard and touch screen, USB 3.0 Loader: Integrated parts loader, tool pallets 300x300 mm Disc loader with 7 positions, 21 grinding wheels
