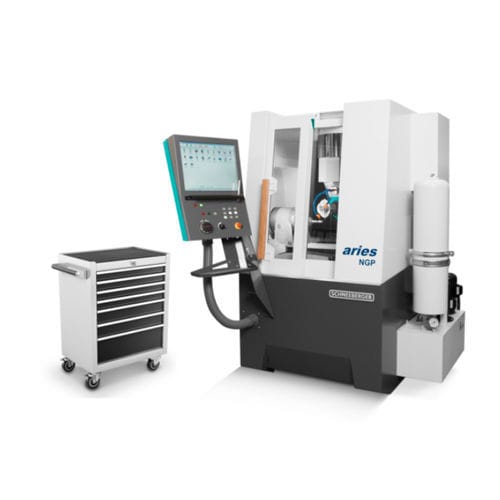

Cutting tool grinding machine aries NGP-4

ball screwCNC4-axis

4-axis CNC tool grinding machine with generous working area, high SCHNEEBERGER machine quality and stability! For the 4-axis processing of large and long tools. Ideally suited to the re-sharpening of hobs, profile end mills, dovetail end mills and planing heads. Accessories for individual expansion of the application spectrum and for increasing productivity. Numerous accessories to expand the application range and productivity of the machine. Measurement system in all axes Manual tailstock Manual steady rest Collet system, mandrels Clamping device for planer head with carbide tool rest Coolant filtration system Exhaust air filter CO2 extinguishing system Axes: Z: 260 mm, vertical axis, roller guide, recirculating ball screw, resolution 0.001 mm A: ISO 50 tool carrier, resolution 0,001° C: +/- 180°, manual rotation of the grinding head, position indicator integrated into the controller, measurement system resolution 0.001° Control: FANUC 35i Series, 4 controlled axes 10.4” TFT color monitor, touch screen Grinding head: Double ended grinding spindle, direct drive, HSK 50, Weight: 1700 kg
