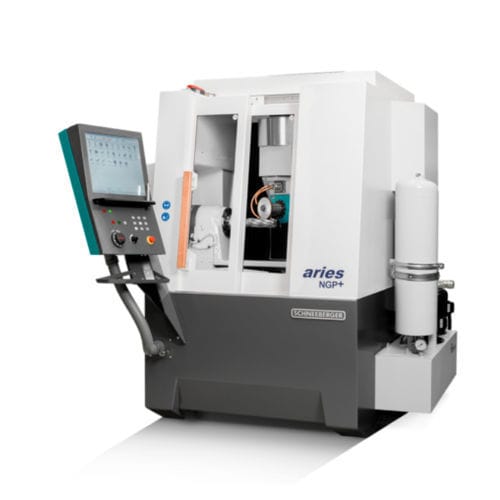

Cutting tool grinding machine aries NGP+

for bladesuniversalCNC

The big sister of the ariesNGP: wider machine base, larger door openings and center heigth of 210mm. CNC Tool Grinding Machine for highest flexibility due to the innovative 5 axes machine concept. Best situated for sharpening of universal cutting tools, as well as production grinding of smaller batch tools. Tool dimension up to a diameter of 400mm and length up to 330mm fit perfectly in the ariesNGP+. Generous work envelope, perfect SCHNEEBERGER machine quality and rigidity. Accessories for the individual expansion of the application wealth and the advancement of productivity: Direct scale system in all axes Tailstock manual Steady Rest manual Collet system, chucking arbors and insert holder Coolant filtration system Mist collector Co2 Fire extinguishing system Axes: Z: 325 mm (12.8”), vertical, linear bearings, ball screw, resolution 50 nm A: HSK 80 or ISO 50, work holder, resolution 0.0001° C: 320°, rotation of the grinding head, resolution 0.0001° Control: FANUC 31i-B5, optional FANUC 0iF, 5 controlled axes 19” TFT color monitor, touch-screen, USB 3.0 Loader: Integrated tool loader, tool pallet 200 x 200 mm (7.9” x 7.9”) Grinding head: Double ended grinding spindle, direct drive, HSK 50, liquid-cooled Weight: 2'000 kg (3‘409 lb)
